New Brunswick™ Excella® E24 Series

Category Shaking Incubators
Manufacturer Eppendorf
Country of manufacture Germany
Overview

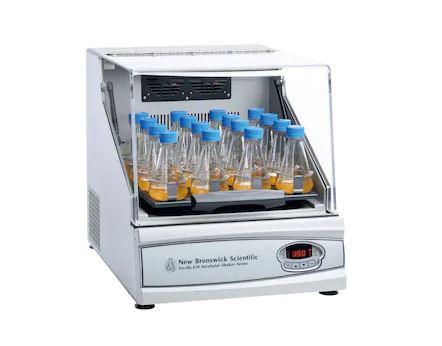

Benchtop incubator shaker for use with interchangeable platforms, clamps, and test tubes, the benchtop Excella E24 and E24R (refrigerated) shakers accommodate flasks up to 2.8 L in volume. The acrylic lid provides excellent visibility of your samples.

A wide variety of platforms, clamps and test tube racks provide for a number of different workstreams. The E24 and E24R are complemented by Eppendorf’s service offering, ranging from preventative maintenance through to parameter calibration.

Features:

  • Heavy-duty unicentric counterbalanced drive provides long life, vibration-free, quiet, and dependable operation
  • Versatile accessory platform (sold separately) accommodates flasks up to 2.8 L as well as test tube racks and microplate holders
  • User-friendly keypad with simple LED display is clearly visible and easy to use
  • Clear large lid provides excellent visibility minimizing the need to open the lid
  • Audible and visual alarms alert you to setpoint deviations or end of study
  • Acceleration/deceleration circuit prevents sudden starts and stops protecting your cells
  • Microprocessor controls precisely regulate temperature, speed and running time
    Key Attributes
    Cu ft. N/A
    Max Temp 60°C
    Min Temp Ambient +7°C or Ambient -15°C
    Temp Uniformity ±0.1°C at 37 °C
    Interior Outlets No
    Alarms Yes
    Datalogging Capable No
    Warranty (years) 2
    Site Benchtop
    Weight (lbs) 133, 175

    Manufacturer Specifications
    Model Excella® E24 Excella® E24R
    External height (with lid/door open) 101.6 cm (40 in) 101.6 cm (40 in)
    Timer 0.1 – 99.9 h 0.1 – 99.9 h
    Power supply 120 V, 60 Hz 120 V, 60 Hz
    Dimensions (W × D × H) 56 × 76.2 × 61 cm / 22 × 30 × 24 in 56 × 76.2 × 61 cm / 22 × 30 × 24 in
    Weight w/o accessories 60 kg / 133 lb 80 kg / 175 lb
    Temperature range Ambient +7 °C to 60 °C 15 °C below ambient to 60 °C
    Audible and visual alarms yes yes
    Temperature uniformity ±0.1 °C at 37 °C ±0.1 °C at 37 °C
    Available program modes › Constant speed and temperature
    › Timed shaking
    › Constant speed and temperature
    › Timed shaking
    Drive mechanism Heavy-duty unicentric counterbalanced drive Heavy-duty unicentric counterbalanced drive
    Benchtop (B), Under Bench (U), Floor (F) or Stackable (S) B B
    Memory Non volatile with automatic power failure restart Non volatile with automatic power failure restart
    Motor type Solid state, DC brushless motor Solid state, DC brushless motor
    Platform size 46 × 46 cm (18 × 18 in) 46 × 46 cm (18 × 18 in)
    Refrigerated yes
    Slide-out platform no no
    Space-saving glide-up doors no no
    Speed range 50 – 400 rpm 50 – 400 rpm
    cETLus and CE marked yes yes
    Agitation
    Orbit 1.9 cm (0.75 in) 1.9 cm (0.75 in)
    FAQ

    What is the clearance from the platform to the top of the lid?

    Eppendorf does not provide a clearance dimension, but rather recommends that any vessels inside the Excella® E24 are 128 mm (5") tall or less such as not to interrupt the air flow within the chamber.
