TH-ICH Specific Purpose Chambers

Category Environmental Chambers
Manufacturer Jeio Tech
Country of manufacture South Korea
Overview

Manufactured in accordance with ICH Guidelines Q1A-Stability test (R2), Q1B-Photostability test (Option 2).

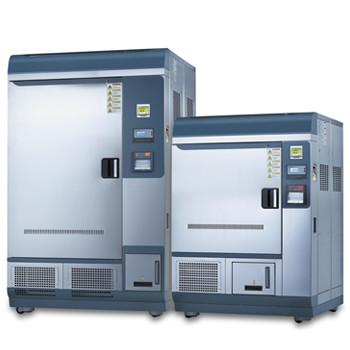

Models: TH-ICH-300/800

Control range
Temperature range from 0 to 120°C Humidity range from 30 to 95% RH

Performance

  • Microprocessor PID control / Temperature calibration / Automatic tuning.
  • Rapid humidity control is achieved by adapting the humidification tank interior to the chamber.
  • Air-tight door closure with perfect sealed packing.
    • - Heat-resistant silicone packing completely blocks high heat leakage from the inner chamber.

Convenience

  • Two different sized models available to suit any users’ needs.
  • Corrosion resistant stainless steel chamber.

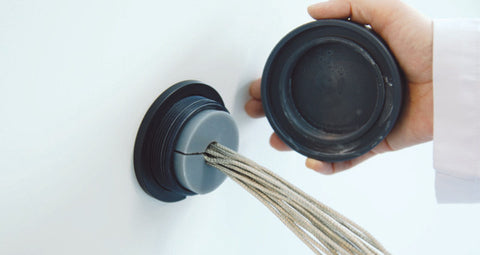

  • Cable port for introduction of external probes or wires.
    • - 50mm diameter cable port comes standard on the left side of the unit.
    • - Additional 50mm or 80mm diameter cable ports, custom ordered. (optional)
  • Inner glass door with entry ports for handling samples without affecting inner chamber temperature and humidity. (optional)
  • Casters for easy mobility during installation or relocation.
  • User friendly LCD controller.
    • - Colorful interactive touch type LCD controller.
    • - Set point temperature and present temperature are clearly shown together on display.
    • - Sufficient programmable control support.
    • - Operating progress can be shown in graph mode for better data understanding.
    • - Automatic start/stop can be programmed for unattended operations.
    • - Display indicates abnormal temperature changes or power failures.
    • - Selective bilingual language support.
  • (Korean / English or English / Chinese, selectable only when placing an order)
    • - Temperature and other operating parameters can be recorded using a six channel digital recorder.(optional)

Computer interface

  • RS-485 communication port (optional) enables connection up to maximum 32 units. Simultaneous monitoring and operating of multiple units is an available feature.
  • Program patterns are simple to set with the use of our software.
  • Easy to check status of real-time operations. Graph data supports easy understanding.
  • Storage and documentation of programs.
  • Data with saving capabilities in excel and text format.
  • Storage of program information, backup of value settings, recovery, and temperature values.
  • RS-232 communication port as standard offer.
          Description No
          Programmable pattern capacity 100
          Pattern repeat time 999
          Part repeat time 255
          Max. segments per a pattern 100
          Available max. segments* 2000
          Programmable process time per a segment 0 to 99 hr. 59 min.

          * Even though the max. segments per pattern are 100, the total available segments are up to 6000 not 10000, therefore arrangement of the number of segment and patterns will need to be done properly.

          Stability test ICH guideline Q1A (R2)

          • Operating progress visible through graph mode for better data analyzation.
          • Cyclic defrost system, designed to work excellently for the long period stability test operation. (※Temperature and humidity changes may occur during automatic defrost.)
          • Maintenance of water supply are easily performed with a front water tank.
            • - Water level check indicated by water level bar in the tank.
          • Water supply during operation is also available for long term test purposes.
          • Direct water system provides user great convenience when performing long-term test. (optional)

          Photostability test ICH guidelineQ1B (Option 2)

          • Built in UV and fluorescent lamps for uniformed luminescence.
          • Equipped with movable UV and VIS sensors .
          • Independent lamp controller
            • - An indicator for Total usage time of UV and fluorescent lamps.
          • Convenient set function of cumulative dosage and lamp Of

          Safety

          • Built in door lock with a key.
          • Automatic shut off after overheat alarm.
          • Low and empty water level alarm.
          • Power supply leakage breaker.
          • Over current protection.
          • Open door alarm.

          PLEASE NOTE: All Jeio Tech environmental chambers are manufactured to order. A lead time of approximately 12 weeks should be expected.

          Some accessories are factory install only and must be ordered at time of Incubator purchase for factory installation at time of manufacture.



            Key Attributes
            Cu ft. 10.6, 26.8
            Max Temp 120°C
            Min Temp 0°C
            Temp Uniformity ± 0.5°C
            Interior Outlets No
            Alarms Yes
            Datalogging Capable Yes
            Warranty (years) 1 (2 years after submission of warranty registration card)
            Site Floor
            Weight (lbs) 617, 822



            Manufacturer Specifications
            Model TH-ICH-300 TH-ICH-800
            Chamber volume (L / cu ft) 300 / 10.6 760 / 26.8
            Controller PID control (LCD Type)
            Temperature 1) Range without humidity (℃ / ℉) -5 to 85 / 23 to 185
            without Light 0 to 85 / 32 to 185 with Light
            with humidity (℃ / ℉) +15 to 85 / 59 to 185 with Light
            Fluctuation 1) (±℃ / ℉) at 40℃ / 60%RH 0.3 / 0.55 0.3 / 0.55
            Variation 1) (±℃ / ℉) at 40℃ / 60%RH 0.5 / 0.9 0.7 / 1.3
            Time Heating 25min (20℃ → 85℃) 30min (20℃ → 85℃)
            Cooling 35min (20℃ → -5℃) 40min (20℃ → -5℃)
            Humidity Range (%RH) 20 to 85
            ※ See page 231 for more detailed humidity range check.
            Fluctuation 2) (±%RH) at 60%RH / 40℃ 3
            Variation 2) (±%RH) at 60%RH / 40℃ 5
            Light source (ICH Q1B option 2) Cool white 3) 6,000 lux 6,500 lux
            Ultraviolet-A 3) 4.5 W/㎡ 5 W/㎡
            Light uniformity VIS. : ±10%UVA : ±15% VIS. : ±15%UVA : ±15%
            Typical time required to reach ICH
            Recommendation of 1.2 million lux-hr
            ≒ 200Hr ≒ 184Hr
            Typical time required to reach ICH
            recommendation of 200 W-hr/m2
            ≒ 50Hr ≒ 40Hr
            Refrigeration System Air - cooled
            Refrigerant R- 404A
            Water tank Capacity (L / cu ft) 15 / 0.53
            Water quality pH6.2 ~ 7.2, Electrical conductivity 20㎲ / cm to below
            No. of wire shelves (standard / max.) 2 / 8 2 / 17
            Distance of between shelves (mm / inch) 60 / 2.4 60 / 2.4
            Max. load per shelf (kg / lbs) 25 / 55.1 40 / 88.2
            Permitted total load (kg / lbs) 75 / 165.3 100 / 220.5
            Dimension (W×D×H) Interior (mm / inch) 750×650×650 / 29.5×25.6×25.6 750×880×1160 / 29.5×34.6×45.7
            Exterior (mm / inch) 1130×985×1520 / 44.5×38.8×59.8 1220×1215×1965 / 48×47.8×77.4
            Net weight (kg / lbs) 280±10 / 617±22 400±10 / 882±22
            Cable port Basically one hole provided / Ø 50mm (2”),
            Optionally max. two holes available / Ø 50 or 80mm (2 or 3.2”)
            Interface port Basically RS-232C, [RS-485 : optional]
            Electrical requirements AC230V, 1ph, 60Hz 15.4 A 24.5 A
            Cat.No. AAHC1001K AAHC1011K
