Jeio Tech TH-I Temperature and Humidity Chamber

Category Environmental Chambers
Manufacturer Jeio Tech
Country of manufacture South Korea
Overview

Great low temperature and humidity control performance.
Models: TH-I-180/300/408

Control range
Temperature range from -40 to 150°C. Humidity range from 20 to 95% RH.

TH-I Temperature and Humidity Chamber humidity profile

Performance

  • Microprocessor PID control / Temperature calibration / Automatic tuning.
  • Advanced performance of low and high temperature and humidity control, achieved by adapting the humidification tank exterior to the chamber, added benefit for long term test.
  • Water recycling and filtering system reduce water consumption for longer operation.
  • Air-tight door closure with perfect sealed packing.
    • - Heat-resistant silicone packing completely blocks high heat leakage from the inner chamber.
    • - Two-point door latch also enhances tightness to door closure.
  • Energy efficiency is achieved by optimization of the insulation system.
    • - Even if the unit is operating at max. temperature, the surface of the unit doesn’t allow high temperatures of over 60℃.
Safety
  • Built in door lock with a key.
  • Automatic shut off after overheat alarm.
  • Low and empty water level alarm.
  • Power supply leakage breaker.
  • Over current protection.
  • Open door alarm.

    Convenience

    • Three different volume sizes are available to suit any users’needs.
    • Corrosion resistance stainless steel chamber and electric polished humidification tank.
    • Maintenance of water supply are easily performed with a front water tank.
      • - Portable water container makes supplying water convenient.
    • Water supply during operation is also available for long term test purposes.
    • Direct water system provides user great convenience when performing long-term tests. (optional)
    • Clear observation of samples.
      • - Tempered glass door with built in heating wire.
      • - Energy efficient, long life span LED lighting.
      • - Wider view, inner glass door is available for monitoring of samples. (optional)

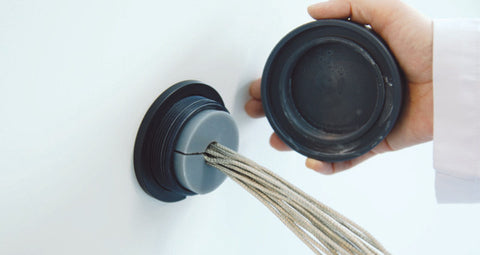

    • Cable port for introduction of external probes or wires.
      • - 50mm diameter cable port comes standard on the left side of the unit.
      • - Additional 50mm or 80mm diameter cable ports, custom ordered. (optional)
    • Casters for easy mobility during installation or relocation.
    • User friendly LCD controller.
      • - 5.7 inch colorful interactive touch type LCD controller.
      • - Set value and present value are clearly visible together on display.
      • - Operating progress visible in graph mode allow for direct data interpretation.
      • - Built-in SD card drive.
      • - Trilingual support. (English / Chinese / Korean)
      • - Temperature and other operating parameters recorded with use of an selectable recorder. (optional)
      • - Sufficient programmable control support.
      Description No
      Programmable pattern capacity 120
      Pattern repeat time 999
      Max. segments per a pattern 100
      Available max. segments* 1200
      Programmable process time per a segment 0 to 999hr.
      59 min. 59 sec.

      * Even though the max. segments per a pattern are 100, available total segments are up to 1200 not 12000, so you need to arrange the number of segment an patterns properly.

      Computer interface.

      • RS-485 communication port enables connection of up to maximum 9 units. Simultaneous monitoring and operating of multiple units is an available feature. (optional)
      • Program patterns are simple to set with the use of our software.
      • Storage of program information, backup of value settings, recovery, temperature, humidity values.
      • RS-232 communication port comes standard.

      PLEASE NOTE: All Jeio Tech environmental chambers are manufactured to order. A lead time of approximately 12 weeks should be expected.

      Some accessories are factory install only and must be ordered at time of Incubator purchase for factory installation at time of manufacture.

      Key Attributes
      Cu ft. 7.4,11.9,14.4,
      Max Temp 150°C
      Min Temp -40°C
      Temp Uniformity ± 0.5°C
      Interior Outlets No
      Alarms Yes
      Datalogging Capable Yes
      Warranty (years) 1 (2 years after submission of warranty registration card)
      Site Floor
      Weight (lbs) 706, 849, 904

      Manufacturer Specifications
      Model TH-I-180 TH-I-300 TH-I-408

      Chamber volume (L / cu ft)

      189 / 7.4

      302 / 11.9

      408 / 14.4

      Controller

      Programmable, Touch screen type controller (5.7” color monitor)

      Temperature

      Range (℃ / ℉)

       -40 to 150 / -40 to 302  without humidity, 15 to 90 / 59 to 194 with humidity

      * Best programmable control range : -30 to 140 / -22 to 284

      Fluctuation 1) (±℃ / ℉) at 40℃ / 75%RH

      0.3 / 0.54

      Variation 1)  (±℃ / ℉) at 40℃ / 75%RH

      0.5 / 0.9

      Time

      Heating - without humidity (min.)

      70 from -40℃ to 120℃ (-40℉ to 248℉)

      Cooling - without humidity (min.)

      75 from 20℃ to -40℃ (68℉ to -40℉)

      Humidity

      Range (%RH)

      20 to 95  ※ See Feature page for more detailed humidity range check.

      Fluctuation 1) (±%RH) at 75%RH / 40℃

      0.4

      Variation 1) (±%RH) at 75%RH / 40℃

      3

      Refrigeration

      System

      Mechanical single stage refrigerator system (air-cooled condenser)

      Refrigerant

      R-507

      Water Supply

      Capacity

      15L (0.53cu ft) - Cartridge type

      Water quality

      pH6.2 to 7.2 / Electrical conductivity 20㎲ /cm to below

      No. of wire shelves (standard / max.)

      2 / 9

      2 / 10

      2 / 10

      Distance of between shelves (mm / inch)

      40 / 1.6

      40 / 1.6

      40 / 1.6

      Max. load per shelf (kg / lbs)

      20 / 44.1

      25 / 55.1

      25 / 55.1

      Permitted total load (kg / lbs)

      50 / 110.2

      65 / 143.3

      65 / 143.3

      Dimension (W×D×H)

      Interior (mm / inch)

      500×630×600 / 19.7×24.8×23.6

      600×630×800 / 23.6×24.8×31.5

      600×850×800 / 23.6×33.5×31.5

      Exterior (mm / inch)

      1003×1139×1468 / 39.5×44.8×57.8

      1103×1139×1668 / 43.4×44.8×65.7

      1103×1359×1668 / 43.4×53.5×65.7

      Viewing windows (mm / inch)

      200×330 / 7.9×13

      Net weight (kg / lbs)

      320 / 705.5

      385 / 848.8

      410 / 903.9

      Cable port

      Basically one hole provided / Ø50mm (2”)

      - Optionally max. two holes available / Ø 50 or 80mm (2 or 3.2”)

      Interface port

      Basically RS-232C [RS-485-optional]

      Electrical requirements (230V, 60Hz) 1ph / 26.3A 1ph / 26.7A
      Cat. No. AAH80111K AAH80121K AAH80131K
      FAQ

      What is the difference between the TH-I Temperature and Humidity Chamber and the TH-G Temperature and Humidity Chamber?

      The only difference is the humidity profile is slightly different. Unless that minor change is valuable, we recommend the TH-G as they cost a few thousand dollars less.



      Is the viewing window included as a standard feature? Can I get a larger viewing window?

      Yes, the viewing window is a standard feature.

      The size of the viewing window cannot be changed, however we can install an inner glass door which would allow you to open the outer door and have a more complete view of the inner chamber without breaking the seal of the chamber. If you would be interested in getting a Jeio Tech environmental chamber with an inner glass door, please contact us for pricing and details.
