Incucell V Forced Air Incubators

Overview

BMT Forced Air Incubators utilize a patented system of air circulation where air flow is directed both vertically and horizontally. The patented thermodynamic spiral air flow ensures extremely tight temperature distribution within the working space. The computer-engineered air distribution plates ensure that the air flow is from the bottom up in a natural thermal spiral motion which results in optimum heating of materials and precise temperature regulation with minimum energy consumption.

INCUCELL V
Incubators with Heating and Cooling
The Incucell V Incubator provides very accurate temperature distribution within the chamber. Due to the forced air, the chamber and load heat up quickly and accurately. Available in the following chamber sizes: 0.8 ft3 (22 liters), 1.9 ft3 (55 liters), 3.9 ft3 (111 liters), 7.8 ft3 (222 liters), 14.3 ft3 (404 liters), 25 ft3 (707 liters).

The Incucell V utilizes a patented air flow system to achieve very accurate temperature distribution within the chamber. A central fan in the top of the Incubator forces air through computer-engineered precision air ports located in the air distribution plates within the chamber. This leads to more precise temperature distribution with small deviations. Ideal for use in biological laboratories, quality tests in pharmacy, cosmetics and testing in veterinary medicine and the food processing industry.

Features:

• AISI 304 stainless steel chamber
• Working temperature from 10°C above ambient to 99.9°C
• Fuzzy Logic microprocessor controller
• 5” of insulation for low heat radiation
• Patented Forced, both vertical and horizontal air flow for precise temperature distribution
• Easy open door latching system
• Attractive look and design
• AISI 304 Stainless steel removable inner chamber (no tools required – easy cleaning) for cleaning and sterilization
• Two internal wire shelves included

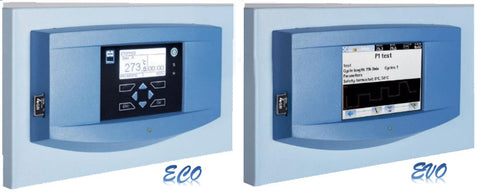

ECO Line Features:

• Intuitive control
• Microprocessor controller enabled with Fuzzy
• logic algorithm
• Multi-language communication includes: English / French / Spanish
• Acoustic and visual alarm
• LED indicator of device functions
• LCD display - 3 inches (7.6 cm)
• FSTN display, using COG technology
• Adjustable display contrast depending on device placement
• Exceptionally wide-angle vision
• Large display is visible at a distance
• Display of temperature during operation is enlarged for easy viewing
• Soft-Touch keyboard surface
• Mechanical key response
• Symbols integrated directly in the keyboard
• Keyboard can be locked against unauthorized access
• Real time programming and cycling
• Optional – Ramping to set the rate of temperature change
• Optional - Integrated datalogger for temperature and relative humidity measurement & recording
