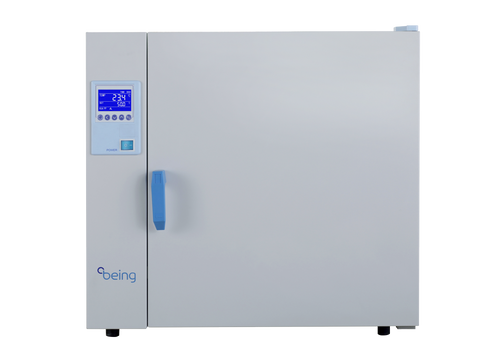

BEING BIF Mechanical Convection Incubators

Category General Purpose Incubators
Manufacturer BEING
Country of manufacture China
Overview

Laboratory incubator applications are diverse because of the many different industries and protocols they are used for, the BEING LAB Incubator family is designed to accommodate a wide range of applications. The BEING Controller guarantees temperature accuracy and control.

Features:

  • Design, safety test results are in line with international standards DIN 12880.
  • Temperature Range : Amb +5℃ ~ 80℃
  • P.I.D temperature controller provides accurate and reliable temperature control, built-in Over-temperature protection/alarm function.
  • Automatic calibration function, able to adapt to a variety of laboratory environments.
  • The BEING Controller provides programmability for 7 periods and 9 steps for each period making for a total of 63 programmable steps.
  • Adjustable Exhaust Port/Vent.
  • Extended Life Silicone Rubber Gasket provides excellent sealing and long service life, but is easily replaced when the time for replacement is needed.
  • Mechanical convection facilitates hot air circulation.
  • Available RS-232 and USB ports for external control and data collection(Option)
Convenience
  • Mechanical Convection Incubator
  • Volumes from 35 ~ 253 L
  • Inner chamber is made from corrosion-resistant mirror stainless steel.
  • Round curved inner angle is easy to clean.
  • Anti-skid shelf design, easy to operate by single hand.

Safety

  • Auto Start Feature after power loss/return .
  • Temperature deviation alarm.
  • Over temperature set point alarm.
  • Over current protection.
  • Independent Over-temperature protection meets DIN 12880 International standard requirements provides you double protection.
Key Attributes
Cu ft. 0.6-8.1(model dependent)
Max Temp 80°C
Min Temp Ambient +5°C
Temp Uniformity ± 1°C at 37°C
Interior Outlets No
Alarms Yes
Datalogging Capable Optional
Warranty (years) 2
Site Floor, Stackable
Weight (lbs) 105, 123, 181, 262



Manufacturer Specifications

Chamber Volume

1.2 cu ft (35 liters)

2.4 cu ft (67 liters)

5.2 cu ft (146 liters)

8.9 cu ft (253 liters)

Temperature Range

Ambient+9~176℉
Ambient+5~80℃

Ambient+9~176℉
Ambient+5~80℃

Ambient+9~176℉
Ambient+5~80℃

Ambient+9~176℉
Ambient+5~80℃

Temperature Stability

±0.2

±0.2

±0.2

±0.2

Display Resolution

0.1

0.1

0.1

0.1

Uniformity at 100

±3.0

±3.0

±3.0

±3.0

Uniformity at 37

±1.0

±1.0

±1.0

±1.0

Heated to 37

25min

30min

30min

30min

Max # of Shelves

5

6

10

16

Max. Load per Shelf

20Kg

20Kg

20Kg

20Kg

Internal Dimension (WxHxD)

12.6 x 12.6 x 11.8 inch

15.8 x 16.3 x 15.9 inch

20.5 x 20.9 x 20.9 inch

25.6 x 25.6 x 23.6 inch

External Dimension (WxHxD)

23.0 x 20.9 x 21.7 inch

26.2 x 24.8 x 20.1 inch

30.9 x 29.3 x 27.0 inch

36.0 x 35.2 x 30.0 inch

Net Weight

105 lbs

123 lbs

181 lbs

262 lbs

Timer

1~5999mins

1~5999mins

1~5999mins

1~5999mins

Electrical Requirement

AC120V,60Hz

AC120V,60Hz

AC120V,60Hz

AC120V,60Hz

Power

300W

350W

600W

700W

110V Cat. No.

BH15235U

BH15255U

BH152120U

BH152200U

220V Cat. No.

BH15235C

BH15255C

BH152120C

BH152200C
